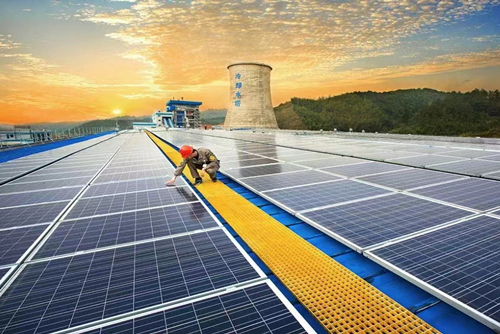

Solar Fiberglass Walkway

Solar FRP Walkway are available in a variety of resins, standard and custom colors, depths, panel sizes and mesh configurations. Surface options include a meniscus or integrally applied grit top, both of which offer superior, slip resistant footing. Solar FRP Walkway is used in place of traditional materials for a FRP solution that fits a wide range of applications and environments.

Inquiry now

categories

Product Details

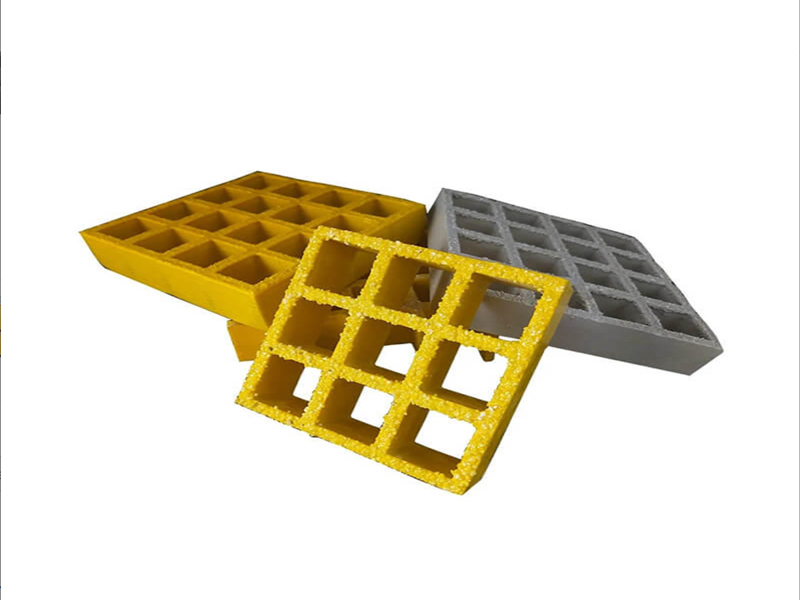

Description: Solar Fiberglass Walkway

Raw Materials: ISO-Phthalic / Orthophthalic/Vinyl/Phenolic resin+fiberglass roving + Other auxiliary materials.

Color: Yellow, Blue, Grey and other customized color

Features: Strong load-bearing capacity,acid and alkali corrosion resistance,flame retardant

Application: Chemical factory, Aquaculture, Municipal greening, Electroplating factory, Car washing, Drilling platform, etc.

Size Table of FRP/GRP Molded Walkway
Mesh Shape	Thickness	Mesh Size	Panel Dimension	Open Area	Weight
Mesh Shape	(mm)	(mm)	(mm)	(%)	(kg/m²）
Normal Square Mesh	25	38*38	12203660,12204040	68	12.3
	25	19*19	12203660,12204040	42	16.81
	25	40*40	1000*4000	67	12
	25	100*25	1220*3660	67	13
	30	38*38	12203660,12204920,1000*4000	68	14.6
	30	20*20	12203660,10004000	42	18.03
	38	38*38	12203660,12204920,1000*4040	68	19.5
	38	25*100	12203660,12204920,1000*4000	68	22.43
	38	25*152	12203660,12204920,1000*4000	56	22.43
	38	38*152	1220*3660	67	15.96
	38	19*19	12203660,12204920,1000*4000	42	23.51
	38	25*125	565*3050	56	23.02
	38	38*100	1220*3660	62	15.2
	38	25*100	1220*3660	46	21.01
	40	20*20	10073007,10074007	42	23.7
	40	40*40	10073007,12073007	67	19.2
	50	50*50	12203660,12204920,1000*4000	71	23.51
	60	38*38	12203660,12204920,1000*4000	58	50.43
