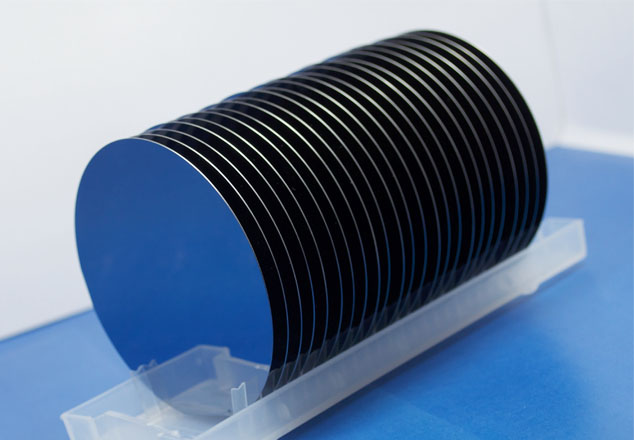

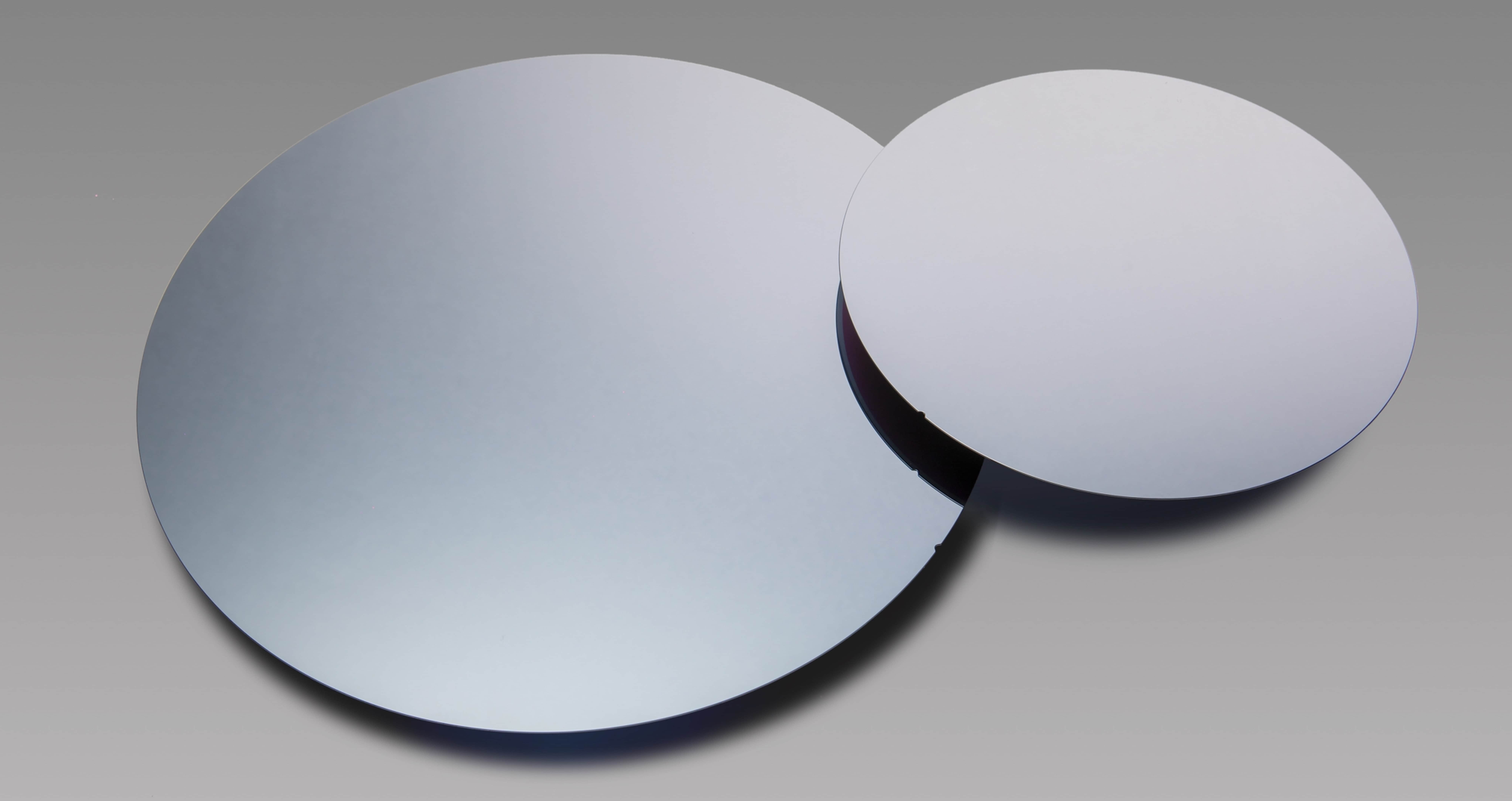

Mono- and multi high-performance solar silicon wafers. Manufactured to the exact specifications of PV cell and module producers.
| Type | N-Type | P-Type |
| Dopant | Phosphorus | Gallium |
| Dimensions | M10： 182.2*182.2*φ247mm/ 182.2×183.75*247mm/ 182.2×191.6*262.5mm/ M10L:182.2×183.75*256mm G12:210*210*φ295mm G12-R:182*210*φ272mm |
M10:182.2*182.2*φ247mm G12:210*210*φ295mm |
| Oxygen Content | ≤12 | ≤16 |
| Resistivity | 0.4-1.6<Ω·cm> | 0.4-1.1<Ω·cm> |
| Lifetime | ≥800<µs> | ≥70<µs> |
SPECIFICATIONS
| Thickness | 90-160µm | Carbon Content | ≤1 |
| TTV | ≤25/μm | Bow | ≤40/μm |
| Saw Mark | ≤15/μm | Warpage | ≤40/μm |
| Cutting Method | DW | Angle between Adjacent Sides/° | 90±0.15° |
| Surface Quality | No visual defects (no stains/no finger prints/no oil/no glue ). No color difference No bright line |
Chipping | Depth≤0.3 mm Length ≤0.5 mm Count ≤ 2 /pcs no V-chip |
