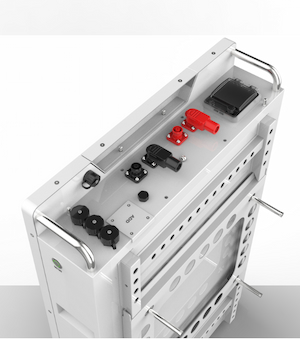

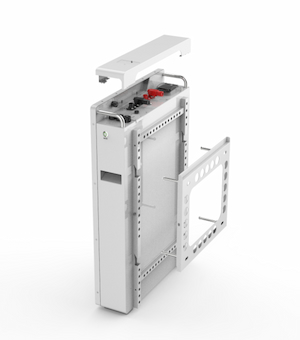

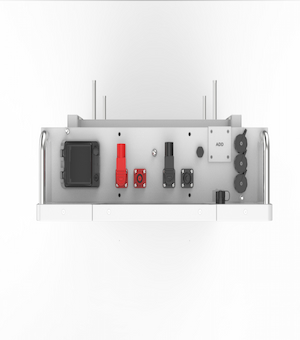

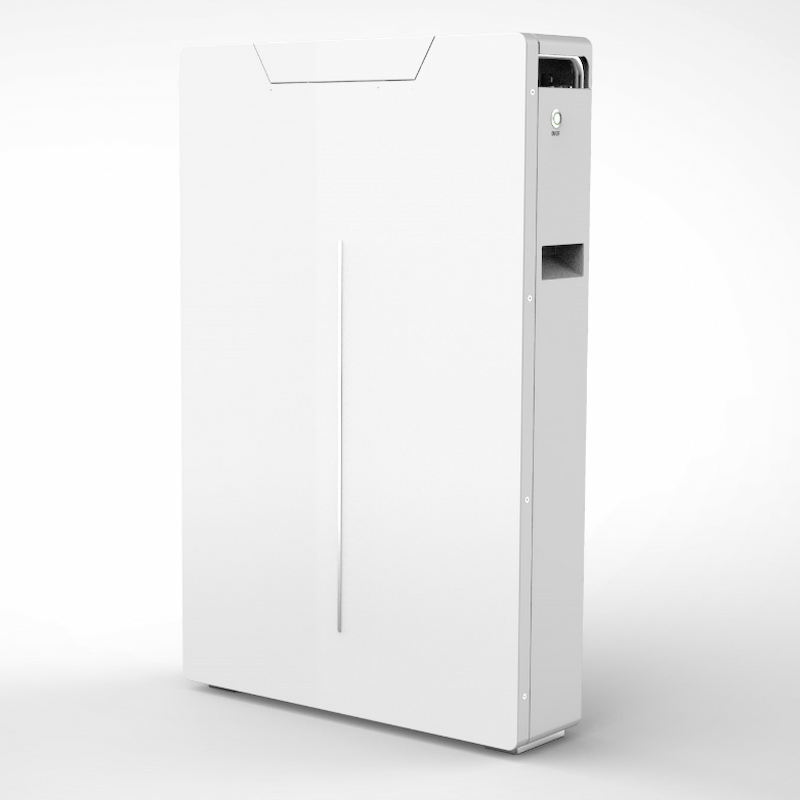

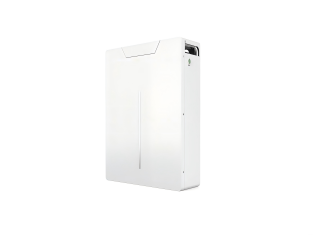

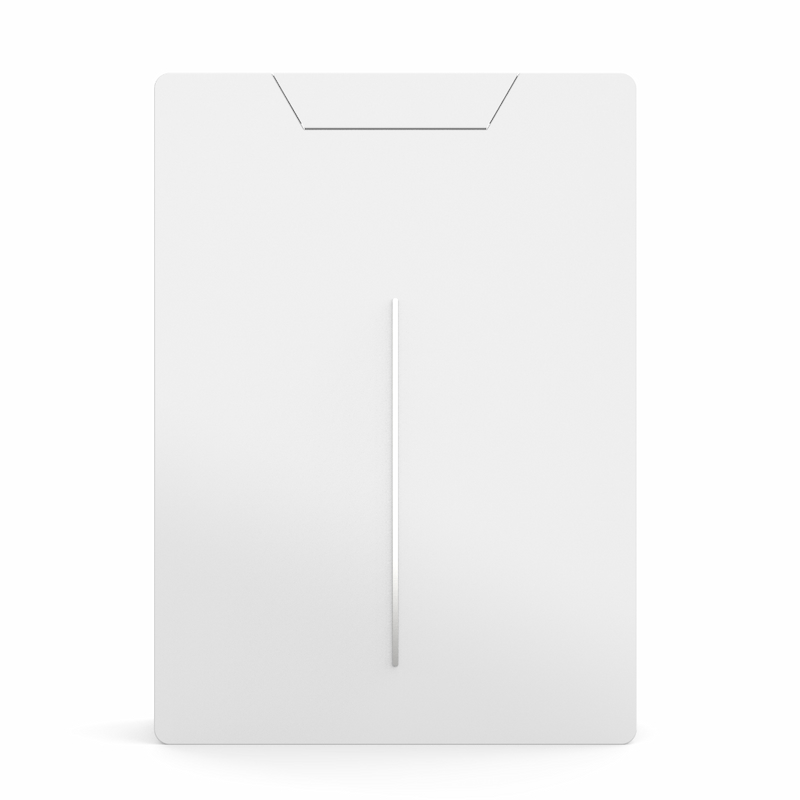

Moto Home Battery Storage System 5.12/10.24Kwh

Moto Home Battery Storage System 5.12/10.24Kwh





Bundle Pack Series are based on a compact single unit that measures 3U in height in the standard configuration. The design allows for multi-parallel configurations (up to 16 units). It is a new addition to the series that allows for multi-parallel configurations (up to 8 units). It features a slim, compact design and is both indoor and outdoor compatible. The flexible solutions are suitable for a wide range of application scenarios.

  • Cell Type :

    LiFePO4 (LFP)
  • Rated Voltage (V) :

    51.2
  • Rated Capacity (Ah) :

    100/200
  • Rated Energy (kWh) :

    5.12/10.24
  • Connection :

    1P16S
  • Working Temp. (℃) :

    Charging: -5 ~50; Discharging: -15~55
  • Self-discharging Rate :

    ≤5% (25 °C, 50% SoC) Per Month
  • IP Rating :

    IP65
  • Scenario :

    Indoor & Outdoor
  • Net Weight (KG) :

    50/95

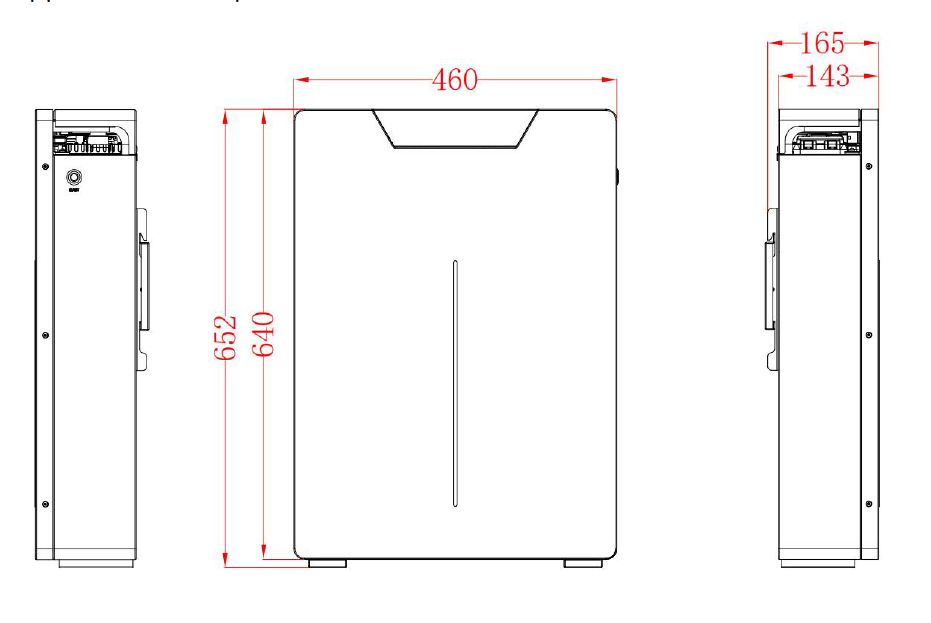

  • Dimension (mm) :

    460*165*652/550*165*867
  • Communication :

    CAN, RS485, Dry Contact, WiFi
  • Certificate :

    IEC62619, IEC62040, IEC61000, UN38.3
  • Calendar Life :

    15 Years (Working Condition 0.5 C @ 25 deg C, 80% DoD, 1 cycle per day)
  • Designed Cycle Life :

    6000 Cycles (0.5C/80%DOD/80%SOH/1 cycle per day)



IEC61000/IEC62040/IEC62619/CE/UN38.3/TUV





• Lithium Iron technology

• Premium grade "A" cells

• Rapid charge and discharge

• 100% Depth of Discharge over 6000 cycles

• 24/7 remote monitoring

• 10-year warranty



















Leave a Message
Should you have any interest in us and want to get more details, please leave a message here, we will get back to you as soon as possible!
